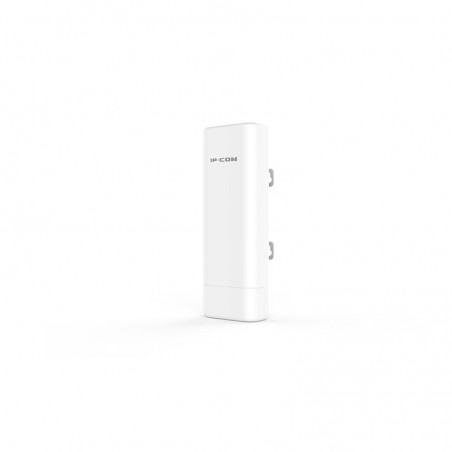

IP-COM CPE12 Microstation M5

0 Commentaire(s)

IP-COM CPE12 Microstation M5 5GHz 5km Point to Point Outdoor CPE

Points forts

5GHz 11n 300Mbps
14dbi directional antenna
IP65 waterproof enclosure
6000V Lightning Protection
AP,Station,WISP operating mode supported
Up to 60 meters of flexible deployment with included PoE Injector

55,75 €

Disponibilité: Rupture de stock

Code de l'article: CPE12

IP-COM CPE12 Microstation M5 5GHz 5km Point to Point Outdoor CPE

CPE12 5GHz Long Range Outdoor CPE is designed to WISP CPE solutions and long distance wireless network solutions for video surveillance and data transmission. It features with 14dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network. Adopt of auto-bridging technology,two CPE can connect to each other automatically to make it easy to setup.

5km+ transmission Range

CPE12 adopts of independent power amplifier and 14dBi directional antenna to provide an efficient way to pick up and maintain a stable signal for a wireless network up to 5km.

Auto-bridge For Two Device

CPE12 adopts of auto-bridge technology,two cpe can connect to each other when you power on them face to face. It is very easy to setup for CCTV surveillance and data.

Super channel-Extended Frequency

CPE12 adopt of Qualcomm AR9344 chipset and special software mechanism optimization for radio driven architecture to offer extended frequency support. This feature is designed to help users get out of the congested, unlicensed 5GHz band and into clean spectrum.

IMAX-IP-COM TDMA proprietary protocol

IMAX is IP-COM TDMA (Time Division Multiple Access) proprietary protocol to improve performance and capacity for wireless WISP outdoor application scenarios.

In outdoor enviroment, the CPE use highly directional antennas to connect to the Basestation from distances that can span several kilometers. the CPE can't sense each other, they become"hidden nodes" and cannot coordinate access to the wireless channel. Thus the Basestation experiences frequent collisions from stations transmitting simultaneously. As the network scales, these collisions build up exponentially, increasing latency and lowering throughput.

With IMAX, it coordinate all the data transmission and allocates time to active clients to provide greater noise immunity performance when compared to the conventional 802.11 CSMA/CA (Carrier Sense Multiple Access / Collision Avoidance) protocol.

Multiple Application Scenarios

Long-Distance Wireless Connection

One work as AP mode and another work as Station mode to create a long distance wireless connection for video surveillance and data transmission.

WISP(Client+Router) Mode

Wirelessly connect to WISP station/hotspot to share Internet to local wireless and wired network.

Professional Outdoor Design

Equipped with IP65 waterproof enclouse and high quality hardware design, CPE12 can work in various weather conditions, such as sunshine, rainfall or extremely low/high temperature environment.

Easy to Setup and Manage

CPE12 comes with a centralized management software that helps users easily to manage all the devices in the network from a single PC-CPE Controller.
